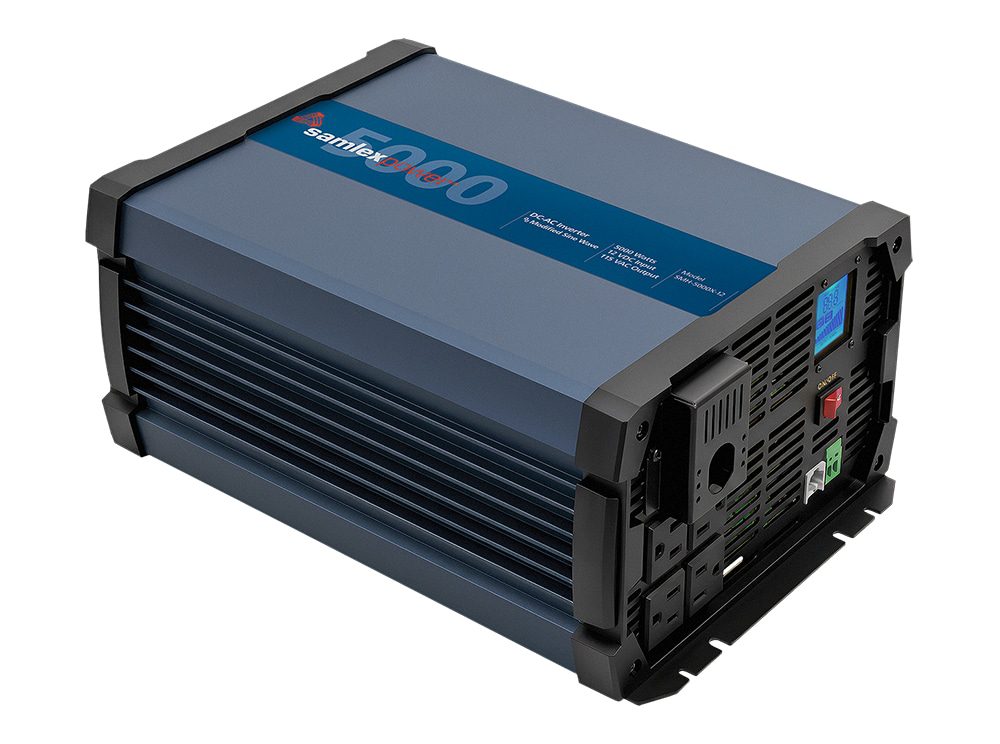

5000 Watt Modified Sine Wave Power Inverter
SMH-5000X-12
High-Power Performance for Demanding Mobile Loads
Engineered for applications where power availability cannot be compromised, the SMH-5000X delivers 5000 watts of continuous output and 10,000 watts of surge power from a 12V battery system. High efficiency and ultra-low idle consumption help extend runtime from limited energy sources, while Hypersurge™ technology provides the extra starting power needed for demanding loads. Compact, lightweight, and installation-friendly, the SMH-5000X brings high-output AC power to vehicles, mobile workspaces, and off-grid systems without the complexity of higher-voltage battery architectures.
2 Year Limited Warranty
5000 Watt Modified Sine Wave Power Inverter
SMH-5000X-12
High-Power Performance for Demanding Mobile Loads
Engineered for applications where power availability cannot be compromised, the SMH-5000X delivers 5000 watts of continuous output and 10,000 watts of surge power from a 12V battery system. High efficiency and ultra-low idle consumption help extend runtime from limited energy sources, while Hypersurge™ technology provides the extra starting power needed for demanding loads. Compact, lightweight, and installation-friendly, the SMH-5000X brings high-output AC power to vehicles, mobile workspaces, and off-grid systems without the complexity of higher-voltage battery architectures.
2 Year Limited Warranty
- 5000W continuous output with 10,000W surge capacity.
- Hypersurge™ technology for high-startup loads.
- High efficiency and ultra-low idle consumption.
- Compact, lightweight design.
- Smart variable-speed cooling.

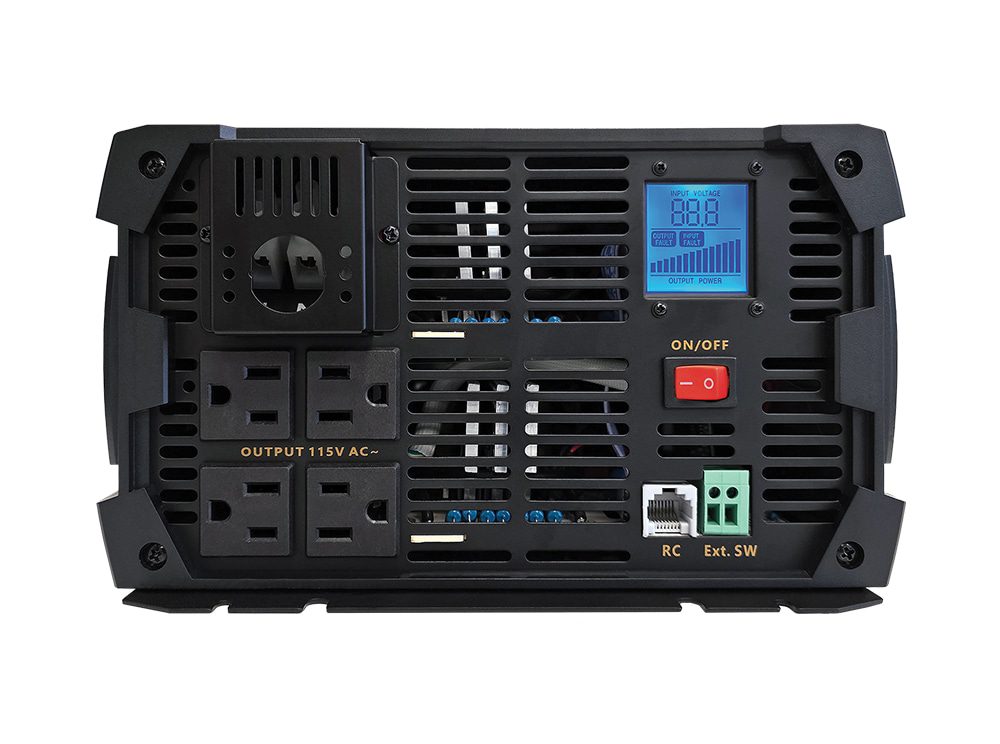

- LCD system status display for: input voltage, output level, and fault message

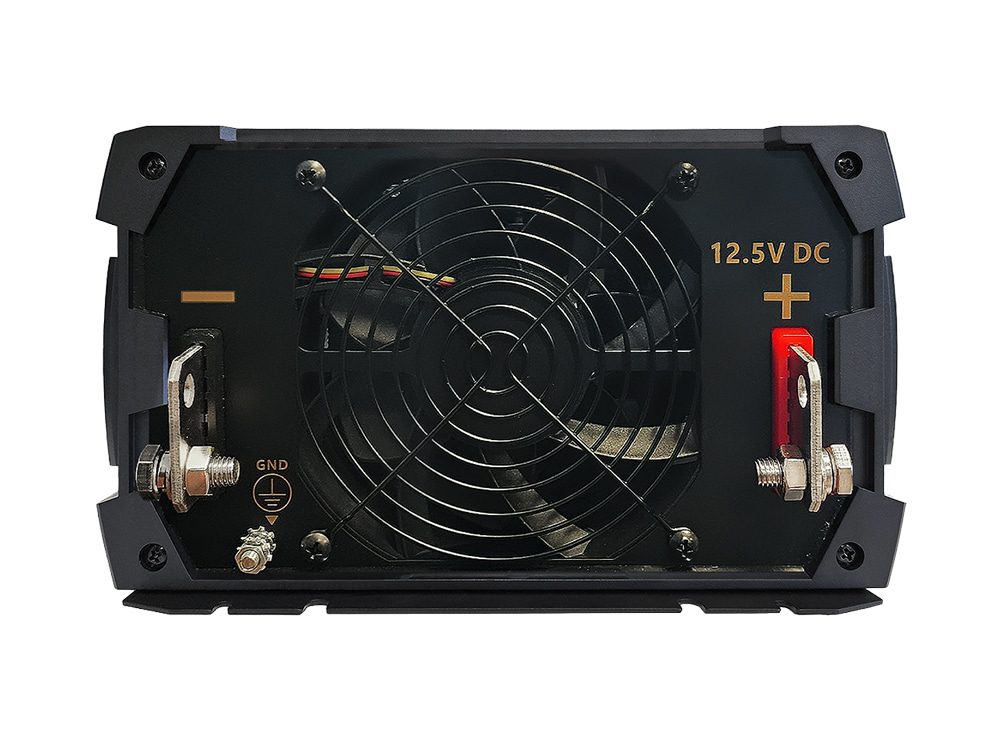

- Heavy-duty DC terminals.
- Remote ON/OFF capability for ignition or switch start.
- Universal Protection circuit for low or high DC input voltage, overload or
short circuit, and over-temperature.
Input: 12 VDC
Output: 115 VAC
Watts: 5,000 Watts
Surge: 10,000 Watts
Weight: 14.33 (lbs)
Weight: 6.5 (kg)
Dimensions: 9.05 x 13.6 x 5.3 (in)
Dimensions: 230 x 345 x 134 (mm)
Safety: ETL Listed to UL 458 and CSA std. C22.2 No. 107.1
WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov – State of California only.
• Fleet service and utility vehicles
• Mobile workshops and contractor trucks
• Municipal and emergency response fleets
• High-demand jobsite power applications
• Specialty and vocational mobile units
