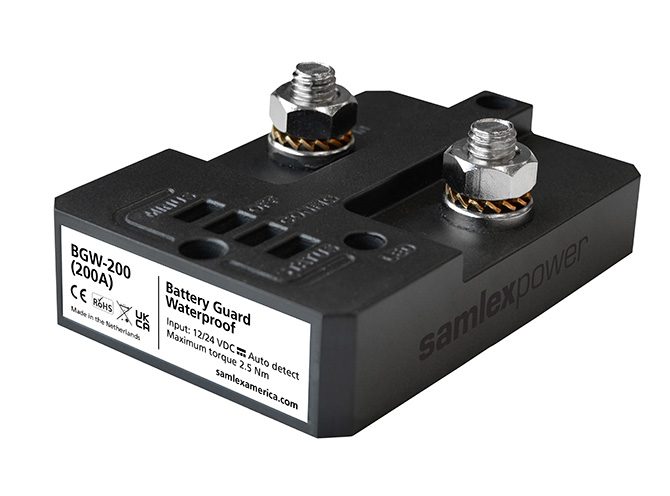

Battery Guard

BGW-200

The Battery Guard Waterproof BGW-200 is an intelligent, user programmable, fully waterproof battery guard. The battery guard prevents excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BGW automatically detects the battery voltage (12 or 24V). The battery guard is capable of carrying 200A continuous load and 210A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed. The BGW-200 has additional options for a remote off switch and an alarm output for connecting a buzzer, LED strip or relay. With its new rubberized polyurethane construction and low profile design, the battery guard can be easily mounted in any location. Available in 40A, 60A and 200 Amp models.

2 Year Limited Warranty

Battery Guard

BGW-200

The Battery Guard Waterproof BGW-200 is an intelligent, user programmable, fully waterproof battery guard. The battery guard prevents excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BGW automatically detects the battery voltage (12 or 24V). The battery guard is capable of carrying 200A continuous load and 210A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed. The BGW-200 has additional options for a remote off switch and an alarm output for connecting a buzzer, LED strip or relay. With its new rubberized polyurethane construction and low profile design, the battery guard can be easily mounted in any location. Available in 40A, 60A and 200 Amp models.

2 Year Limited Warranty
Features
  • Waterproof IP66 rating
  • High voltage cut-off of 16 VDC protects equipment from over-voltage conditions.
  • Low Profile, sealed and rugged casing – allows flexibility in installation.
  • OFF Control input – disconnect battery through a remote switch or relay.
  • Status Indicator – output signal allows for external indication lamp or buzzer alarm.
  • Load shedding – disconnect non critical equipment early, extending the backup time on critical ones.
Specifications

Input: 6-35 VDC
Output: 6-35 VDC
Amps: 200 Amps
Weight: 0.65 (lbs)
Weight: 0.29 (kg)
Dimensions: 2.99 x 4.37 x 1.53 (in)
Dimensions: 76 x 111 x 39 (mm)

  WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov – State of California only.

Applications
  • Marine
  • Automotive
  • Recreational Vehicle
  • Fleet Vehicles
